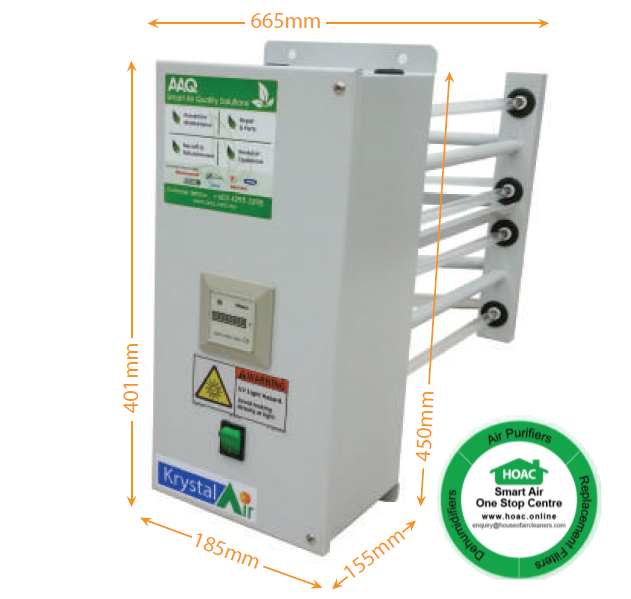

KADM-04 (In-duct)

Krystal Air UV Ozoniser KADM Duct Monted Series

Krystal Air offers UV Air sanitizer fix for the air conditioner coil from mold problem. This is one of the most prevalent causes of the mold smell you get when you enter an air conditioned sick building. UVC

are effective on microbial that pass by within a few inches of the lamp or areas where the light is shining directly on for extended periods of time, such as the air conditioner coil. UV light kill the bacteria by damaging their cell and not able to survive. By installing Krystal Air UV Light KADM series can effectively control mold and bacteria growth on the condition coil.

How does it work?

OZONAIR produces ozone; a natural and non-toxic trace element which helps to remove any contamination in the air and decomposes to oxygen. Ozone is extremely reactive and is known to kill bacteria and germs. So compared to deodorizer sprays which merely cover up odours, OZONAIR actually eliminates them.

Application

• Offensive odour from industrial activities such as meat, fish and other food processing plant, leather tanneries, sewage and domestic refuse processing plants, oil refineries, paper pulp, paint and plastic.
• Prevent mold bacteria growth on air handling unit.
• Affordable price
• Low maintenance cost
• Easy to install
• No space hassle
• High ozone concentration

Special feature

• Affordable price
• Low maintenance cost
• Easy to install
• No space hassle
• High ozone concentration

Product Specification

Brand			Krystal Air
Model			KADM-04 (In-duct)
Dimension (L x W x H mm)			665 x 185 x 401
No of tube			4
Generation Method			184nm UV tubes
Mode of Mounting			Induct
Ozone Output (mg/hr)			2500
Construction			Mild Steel Epoxy Coated
Controls			On/Off Switch with Indicator Light and Hour Meter
Maintenance			UV tube life expectancy: 9000 hours plus, depending on usage
Electrical			220-240 VAC 50 Hz
Net weight			6.6 kg
Warranty			1 Year
Installation			Not provided
